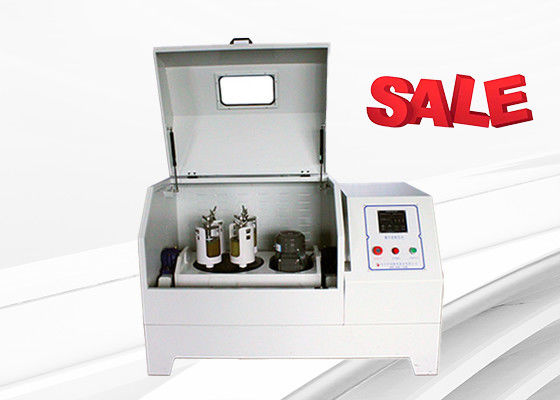

Tencan 6L Full-Directional Planetary Ball Mill, 220V for Laboratory Powder Grinding
Détails sur le produit:
| Lieu d'origine: | Hunan, Chine |
| Nom de marque: | TENCAN |
| Certification: | CE ISO |
| Numéro de modèle: | Qxqm-6 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 ENSEMBLE |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Cas de contreplaqué ou carton |
| Délai de livraison: | 10 jours ouvrables après avoir obtenu le paiement complet |
| Conditions de paiement: | T/T, Western Union |
| Capacité d'approvisionnement: | 100 ensembles par mois |
|
Détail Infomation |
|||
| Nom du produit: | Moulin à boule planétaire complet | Numéro de modèle.: | Qxqm-6 |
|---|---|---|---|
| Volume total: | 6L | Capacité maximale: | 2L |
| Vitesse de rotation: | 70-670 tr / min | Contrôle de vitesse: | Contrôle des fréquences |
| Tension: | 220V-50Hz ou 110V-60Hz | Pouvoir: | 0,75 kW |
| Mettre en évidence: | 6L planetary ball mill for laboratory,220V planetary ball mill for powder grinding,full-directional planetary ball mill with warranty |
||
Description de produit
TENCAN 4-Station Full-Directional Planetary Ball Mill (1.5 L × 4) | CE Certified
Next-Generation Grinding Technology
The TENCAN 4-station full-directional planetary ball mill is a next-generation powder processing system designed for high-uniformity micron and nano-scale grinding. Featuring an advanced 360° multi-axis planetary motion, this benchtop mill delivers exceptional grinding consistency for advanced material research and small-batch production.
With four 1500 ml grinding jars, the system enables simultaneous processing of multiple samples while maintaining laboratory-grade precision and excellent reproducibility.
Innovative Omnidirectional Motion System
The patented full-directional planetary mechanism creates a true 3D grinding environment, where each jar rotates simultaneously around multiple axes. This complex motion generates evenly distributed impact and shear forces, allowing materials to be ground down to ~100 nm scale with high uniformity.
Continuous 360° rotation eliminates grinding dead zones, prevents material accumulation, and significantly improves milling efficiency compared with conventional planetary ball mills.
Specialized Material Processing Applications
This system is optimized for demanding materials and high-value research fields, including:
-
Energy Storage Materials – battery cathodes, solid electrolytes
-
Advanced Ceramics – structural ceramics, functional ceramics, bioceramics
-
Electronic Components – MLCCs, varistors, ferrites
-
Nanocomposites – graphene hybrids, quantum dots
-
Pharmaceutical Compounds – API micronization
-
Optical Materials – phosphors, luminescent powders
Technical Excellence
-
True 3D Milling: Full elimination of grinding blind spots
-
Intelligent Control System: Digital frequency regulation with programmable operation
-
Optimized Material Flow: Prevents agglomeration and ensures uniform dispersion
-
High Batch Efficiency: Four independent 1.5 L chambers for parallel processing
-
Integrated Safety Protection: Emergency stop and intelligent interlock system
-
Versatile Media Compatibility: Supports various grinding media materials
-
Controlled Atmosphere Ready: Adaptable for vacuum or inert gas milling
Performance Advantages
The refined mechanical architecture delivers high energy utilization, achieving approximately 30% higher impact energy than conventional planetary ball mills. Precision-balanced rotation ensures stable operation with a noise level of approximately 68 dB, while the reinforced structure minimizes vibration during continuous operation.
The intuitive control interface allows precise adjustment of milling parameters, enabling reliable processing of specialized and sensitive materials.
Industry-Specific Benefits
-
Research Laboratories: Consistent nano-scale powders with excellent particle size uniformity
-
Industrial Users: Scalable, repeatable results with transferable process parameters
-
Advanced R&D Applications: Ideal for materials requiring strict control of particle size and morphology
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 48 hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
| Parameters of Full-Directional Planetary Ball mill | |||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
