1700°C Lab Sintering Furnace Muffle Furnace for Ceramic Sintering and Thermal Processing
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | TENCAN |
| Certification: | CE |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Délai de livraison: | 7~15 |
| Conditions de paiement: | LC, D/A, D/P, T/T, Western Union |
|
Détail Infomation |
|||
| Type de produit: | Four de type boîte de laboratoire | Température maximale: | 1800°C |
|---|---|---|---|
| Température de fonctionnement: | 1700 ° C | Volume de la chambre: | 1L ~ 729L, personnalisable |
| élément chauffant: | Résistance chauffage du fil | Contrôle de la température: | Contrôle PID programmable à 50 segments |

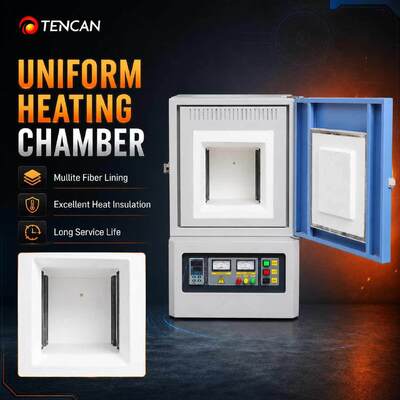

| garnissage de four: | Fibre de mullite polycristalline | Conception de refroidissement: | Coque double couche avec refroidissement par ventilateur |
| Protection de sécurité: | Protection d'alarme de surchauffe | Application: | Frittage, fusion et analyse des matériaux |
| Mettre en évidence: | Ceramic Sintering 1700°C Muffle Furnace,Thermal Processing 1700°C Muffle Furnace,1700°C Lab Sintering Furnace |
||
Description de produit

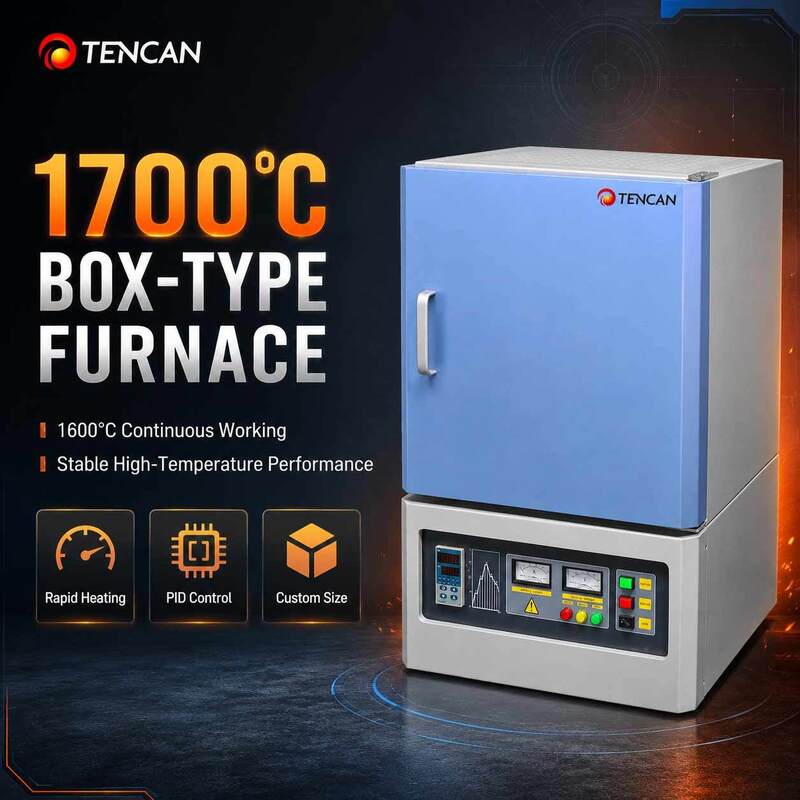

1700°C Muffle Furnace for High-Temperature Thermal Processing
The 1700°C Muffle Furnace is designed for laboratories, universities, research centers, and industrial testing departments that require stable high-temperature performance for ceramic sintering, calcination, firing, material analysis, and thermal processing. It provides a closed heating chamber that helps maintain a clean processing environment and supports consistent heating results for different sample types.
This 1700°C electric box furnace is suitable for ceramics, metal oxides, mineral materials, inorganic compounds, powder samples, and other high-temperature research materials. It is widely used in material development, quality inspection, powder metallurgy, ceramic engineering, chemical testing, and small-batch experimental production.
The furnace adopts high-temperature insulation materials with low heat loss and strong thermal stability, helping improve heating efficiency while maintaining reliable chamber performance during repeated heating cycles. The reinforced chamber design enhances structural durability and supports long-term use under demanding operating conditions.
With accurate temperature control, steady heat distribution, and dependable safety protection, this 1700°C muffle furnace offers an efficient solution for users who need reliable high-temperature equipment for research, testing, and production preparation.
Product Features

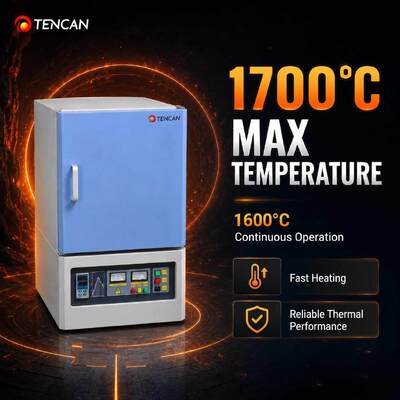

- Maximum temperature range: room temperature to 1800°C.
- Available chamber capacities from 1 L to 1000 L.
- Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
- Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

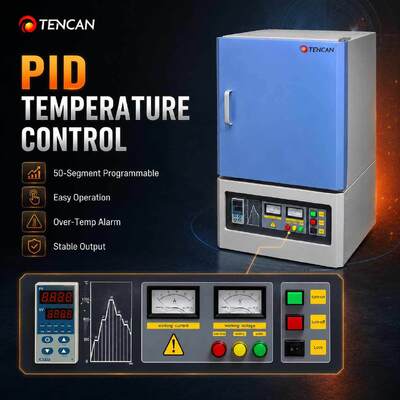

- Intelligent 50-segment programmable automatic temperature control.
- Built-in over-temperature alarm for safer operation.
- Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.
1200°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-12N-1 | 1200 | 1100 | 100×100×100 | 1 | 0.8 | 1 | Type K |
| TC-12N-3 | 1200 | 1100 | 150×150×150 | 3 | 2.5 | 1 | Type K |
| TC-12N-8 | 1200 | 1100 | 200×200×200 | 8 | 5 | 1 | Type K |
| TC-12N-12 | 1200 | 1100 | 200×200×300 | 12 | 6 | 1 | Type K |
| TC-12N-36 | 1200 | 1100 | 300×300×400 | 36 | 10 | 3 | Type K |
| TC-12N-64 | 1200 | 1100 | 400×400×400 | 64 | 16 | 3 | Type K |
| TC-12N-125 | 1200 | 1100 | 500×500×500 | 125 | 25 | 3 | Type K |
| TC-12N-216 | 1200 | 1100 | 600×600×600 | 216 | 36 | 3 | Type K |
| TC-12N-512 | 1200 | 1100 | 800×800×800 | 512 | 64 | 3 | Type K |
| TC-12N-729 | 1200 | 1100 | 900×900×900 | 729 | 80 | 3 | Type K |
1400°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-14S-1 | 1400 | 1300 | 100×100×100 | 1 | 1 | 1 | Type S |
| TC-14S-3 | 1400 | 1300 | 150×150×150 | 3 | 3 | 1 | Type S |
| TC-14S-8 | 1400 | 1300 | 200×200×200 | 8 | 5 | 1 | Type S |
| TC-14S-12 | 1400 | 1300 | 200×200×300 | 12 | 7 | 1 | Type S |
| TC-14S-36 | 1400 | 1300 | 300×300×400 | 36 | 11 | 3 | Type S |
| TC-14S-64 | 1400 | 1300 | 400×400×400 | 64 | 18 | 3 | Type S |
| TC-14S-125 | 1400 | 1300 | 500×500×500 | 125 | 27 | 3 | Type S |
| TC-14S-216 | 1400 | 1300 | 600×600×600 | 216 | 40 | 3 | Type S |
| TC-14S-512 | 1400 | 1300 | 800×800×800 | 512 | 70 | 3 | Type S |
| TC-14S-729 | 1400 | 1300 | 900×900×900 | 729 | 88 | 3 | Type S |

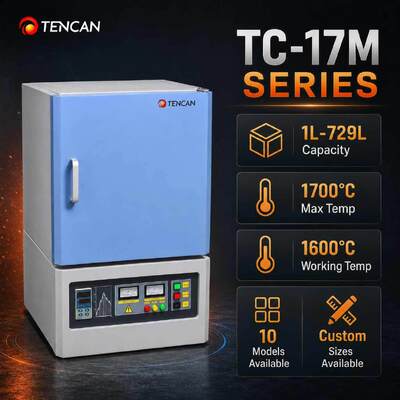

1700°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-17M-1 | 1700 | 1600 | 100×100×100 | 1 | 1 | 1 | Type B |
| TC-17M-3 | 1700 | 1600 | 150×150×150 | 3 | 4 | 1 | Type B |
| TC-17M-8 | 1700 | 1600 | 200×200×200 | 8 | 7 | 1 | Type B |
| TC-17M-12 | 1700 | 1600 | 200×200×300 | 12 | 8 | 1 | Type B |
| TC-17M-36 | 1700 | 1600 | 300×300×400 | 36 | 12 | 3 | Type B |
| TC-17M-64 | 1700 | 1600 | 400×400×400 | 64 | 20 | 3 | Type B |
| TC-17M-125 | 1700 | 1600 | 500×500×500 | 125 | 30 | 3 | Type B |
| TC-17M-216 | 1700 | 1600 | 600×600×600 | 216 | 45 | 3 | Type B |
| TC-17M-512 | 1700 | 1600 | 800×800×800 | 512 | 80 | 3 | Type B |
| TC-17M-729 | 1700 | 1600 | 900×900×900 | 729 | 96 | 3 | Type B |
1800°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-18HM-1 | 1800 | 1700 | 100×100×100 | 1 | 2 | 1 | Type B |
| TC-18HM-3 | 1800 | 1700 | 150×150×150 | 3 | 6 | 1 | Type B |
| TC-18HM-8 | 1800 | 1700 | 200×200×200 | 8 | 8 | 1 | Type B |
| TC-18HM-12 | 1800 | 1700 | 200×200×300 | 12 | 9 | 1 | Type B |
| TC-18HM-36 | 1800 | 1700 | 300×300×400 | 36 | 15 | 3 | Type B |
| TC-18HM-64 | 1800 | 1700 | 400×400×400 | 64 | 25 | 3 | Type B |
| TC-18HM-125 | 1800 | 1700 | 500×500×500 | 125 | 35 | 3 | Type B |
| TC-18HM-216 | 1800 | 1700 | 600×600×600 | 216 | 50 | 3 | Type B |
Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.
Related Accessories
Standard Accessories
- Furnace door insulation brick
- High-temperature gloves
- Crucible tongs
- User manual
- Spare heating elements for 1400°C and 1700°C models
Optional Accessories
- HD touchscreen controller
- Exhaust port
- Observation window
- Multi-layer kiln furniture
- Alumina crucible
- Communication software
